Power Evolved Series Introduction

The quality of the power supply has a direct and significant impact on the overall audio performance. It is important to recognize that all signals, voltage, current, and even sound waves themselves are derived from the household power source. Ensuring a clean and reliable power source is vital for experiencing the full potential of your audio equipment and enjoying an immersive and high-fidelity sound experience.

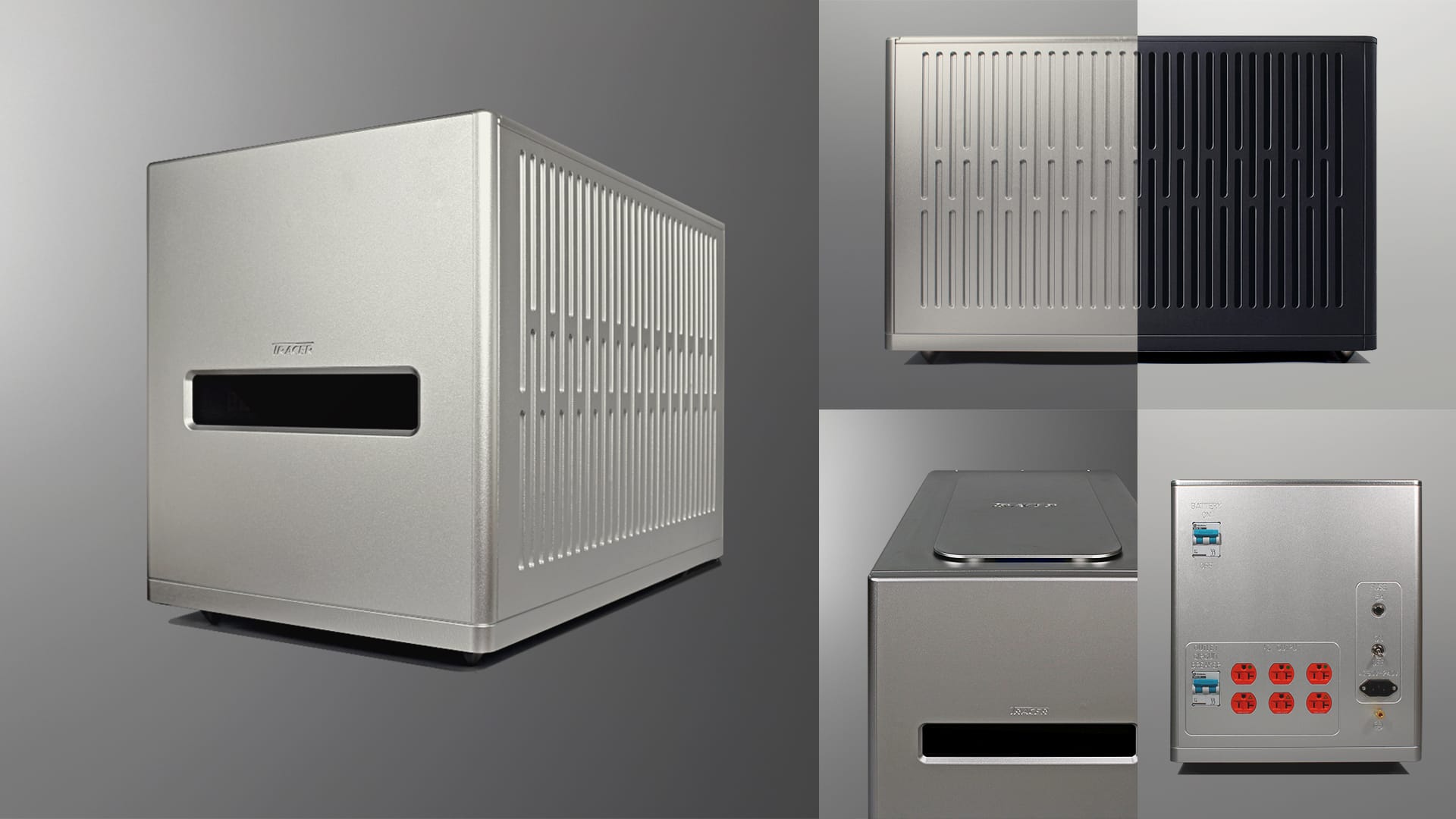

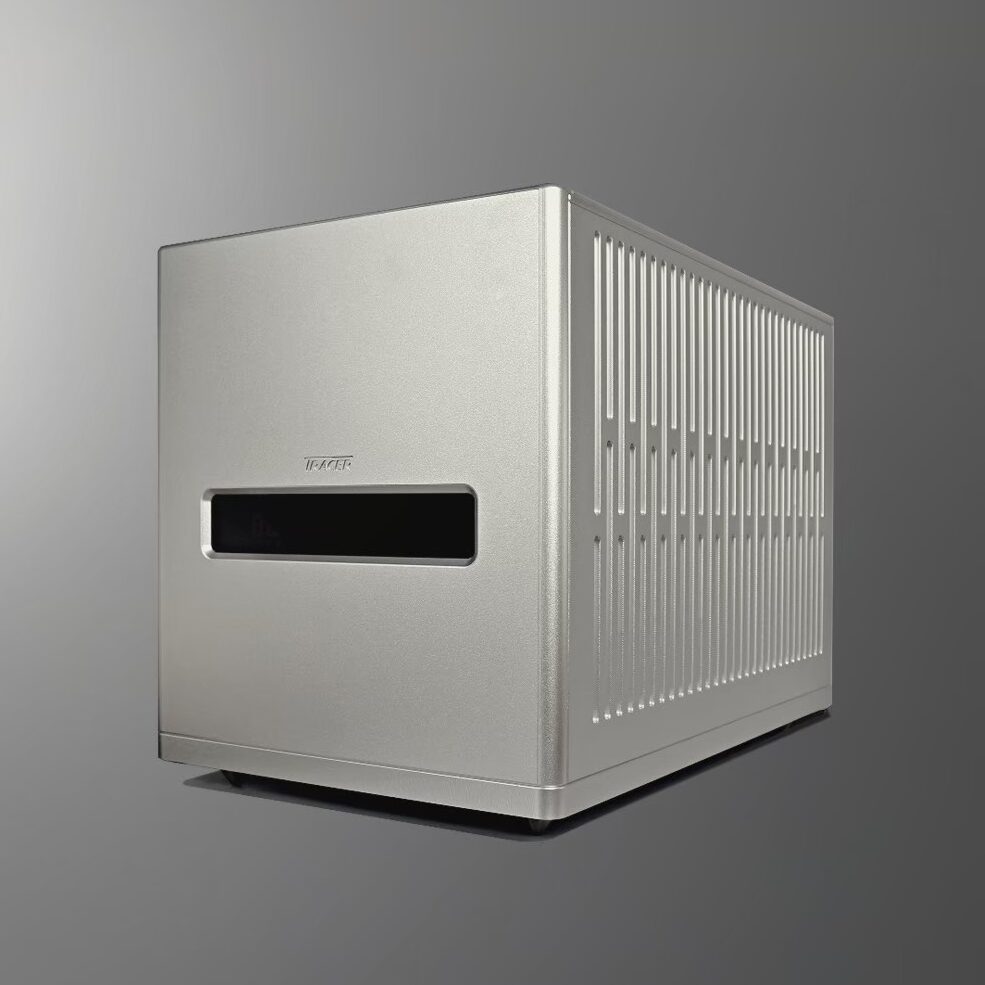

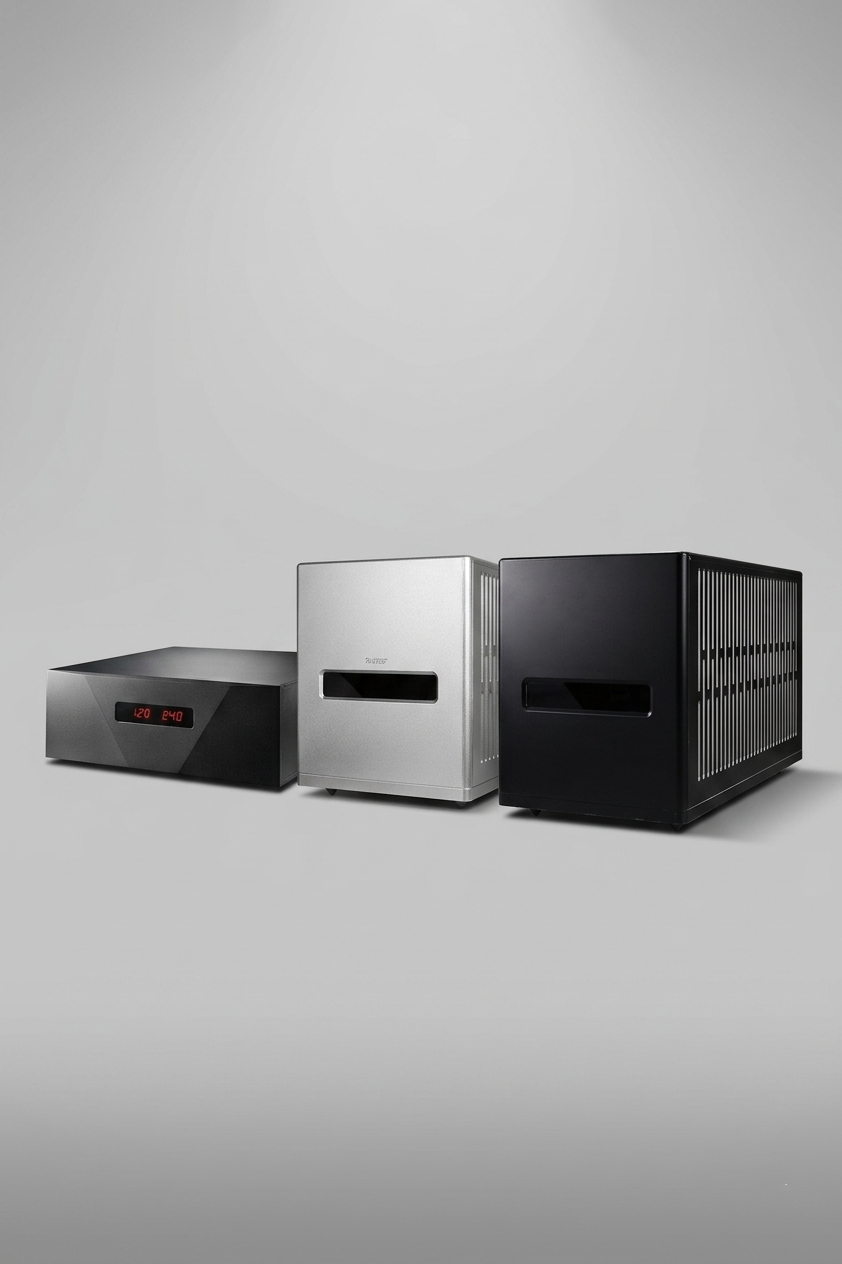

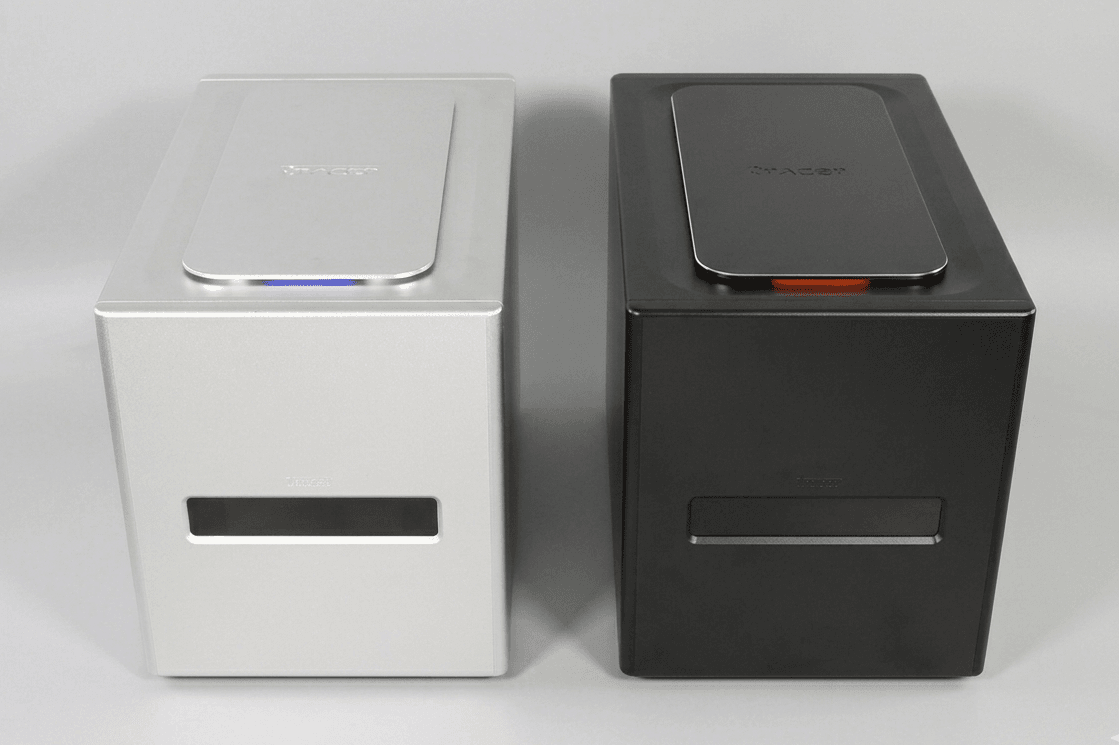

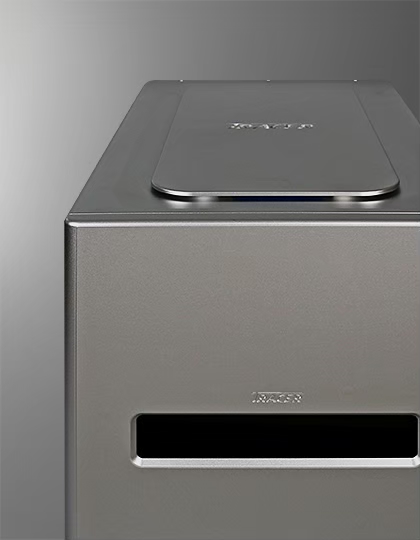

Tracer Power Station

The Tracer power station is the most effective way to enhance the performance of your audio system and the best solution for improving power quality. Household electricity is often affected by excessive noise and voltage instability, which can prevent audio equipment from reaching its optimal performance. By using Tracer regenerative energy to charge the battery and then providing stable power output from the battery to your audio equipment, you can maximize your audio system’s performance.

Pure, Interference-Free Power
The design concept of TRACER’s regenerative power supply is simple yet highly effective: it converts the household AC power into DC power, which is stored in an internal battery. When the audio system is powered on, it draws power directly from the battery, avoiding the noise and interference present in the mains power. This allows you to experience the clearest and most authentic sound, without relying on complex filters or power processors. Switch modes at any time to select the best performance and enjoy an unparalleled listening experience.

Two Operating Modes for Optimal Performance
Charging and Discharging Mode: Charges the battery while in use, ensuring stable system operation.
Pure Discharge Mode: Stops internal charging and uses only the battery power, providing the cleanest and most stable power for optimal sound quality. You can completely disconnect from the mains power, fully isolating external interference, and focus on listening to every note.

Powerful Output, Ready for Any Challenge
Take the U1 Ultra power station as an example – it provides a continuous output of 2800VA, with a peak output of 3300VA for short durations, ensuring stable system operation even under high load conditions.

Core Technology for Stable Power Assurance
Advanced Battery Management System: Monitors the status of each battery in real-time, extending battery life and ensuring stable system operation.
AC/DC Bidirectional Converter: Converts DC power to AC power in real-time, providing stable and clean power to the audio equipment.

Tracer F1 Fine Power Station

Technology: BMS Computerized Lithium Iron Phosphate (LiFePO₄) Battery
Storage Capacity: 3300 Wh
Nominal Battery Voltage: 24 VDC
Dimensions(D x W x H): 580 x 340 x 385 mm
Weight: 75 kg

Input Voltage Range: 100–120 VAC or 200–240 VAC
Output Frequency: 50 or 60 Hz ±0.05% (Crystal Controlled)
Continuous Output Power: 1200 VA
Output Power (3 min @ 25°C): 1400 VA
Peak Power (5 sec @ 25°C): 1700 VA

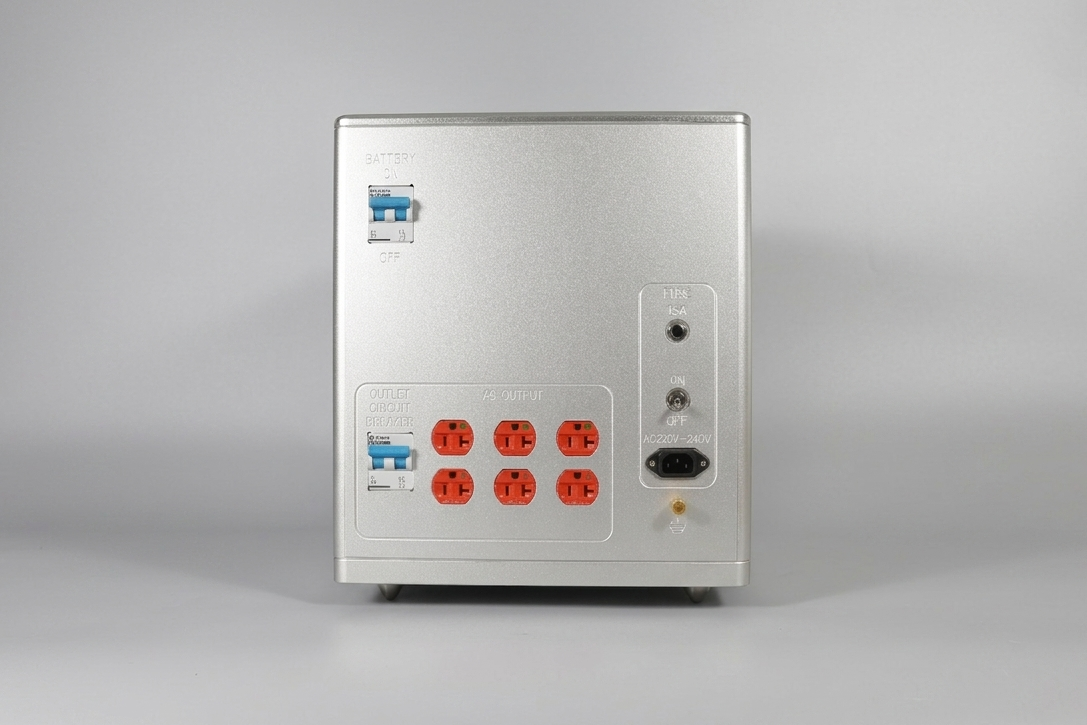

AC Output Sockets: 6 U.S. outlets (including 3 Hubbell duplex medical-grade outlets)

Tracer R1 Reference Power Station

Technology: Computerized Lithium Iron Phosphate (LiFePO₄) Battery
Storage Capacity: 9000 Wh
Nominal Battery Voltage: 24 VDC
Dimensions(D x W x H): 580 x 340 x 385 mm
Weight: 85 kg

Input Voltage Range: 100–120 VAC or 200–240 VAC
Output Frequency: 50 or 60 Hz ±0.05% (Crystal Controlled)
Continuous Output Power: 1300 VA
Output Power (3 min @ 25°C): 1500 VA
Peak Power (5 sec @ 25°C): 2000 VA
AC Output Sockets: 6 U.S. outlets (including 3 Hubbell duplex medical-grade outlets)

Tracer U1 Ultra Power Station

Input Voltage Range: 100–120 VAC or 200–240 VAC
Output Frequency: 50 or 60 Hz ±0.05% (Crystal Controlled)
Continuous Output Power: 2800 VA
Output Power (3 min @ 25°C): 3300 VA
Peak Power (5 sec @ 25°C): 4300 VA
AC Output Sockets: 6 U.S. outlets (including 3 Hubbell duplex medical-grade outlets)

Power Strip Introduction

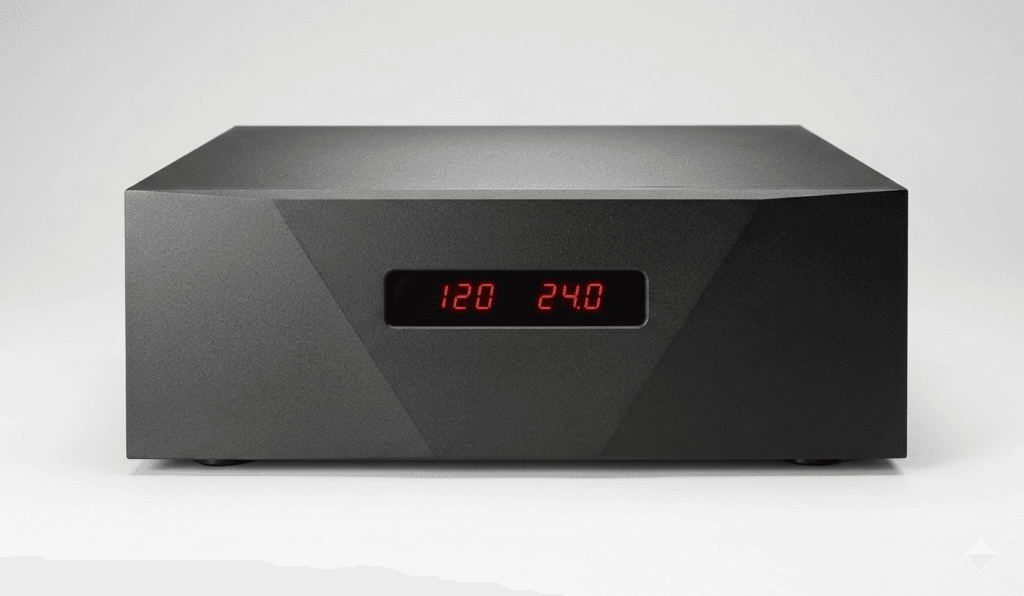

Tracer TS-3000i Isolation Transformer

Isolation transformers are indeed commonly used in hi-fi audio systems to provide electrical isolation and minimize noise interference. They are designed to isolate the sensitive audio equipment from various electrical issues that can degrade audio quality.Tracer Isolation Transformers, provide up to 3000 watts of power. The use of an aluminum alloy enclosure can be beneficial in improving the performance and reliability of hi-fi audio systems by providing electrical isolation and reducing noise interference.

High Quality Ring core 3 KVA balance Isolation transformer
Dimension (W x H x D): 215 x 143 x 324 mm
Weight: 22.5 kg

Aluminum Casing
Silver Ground

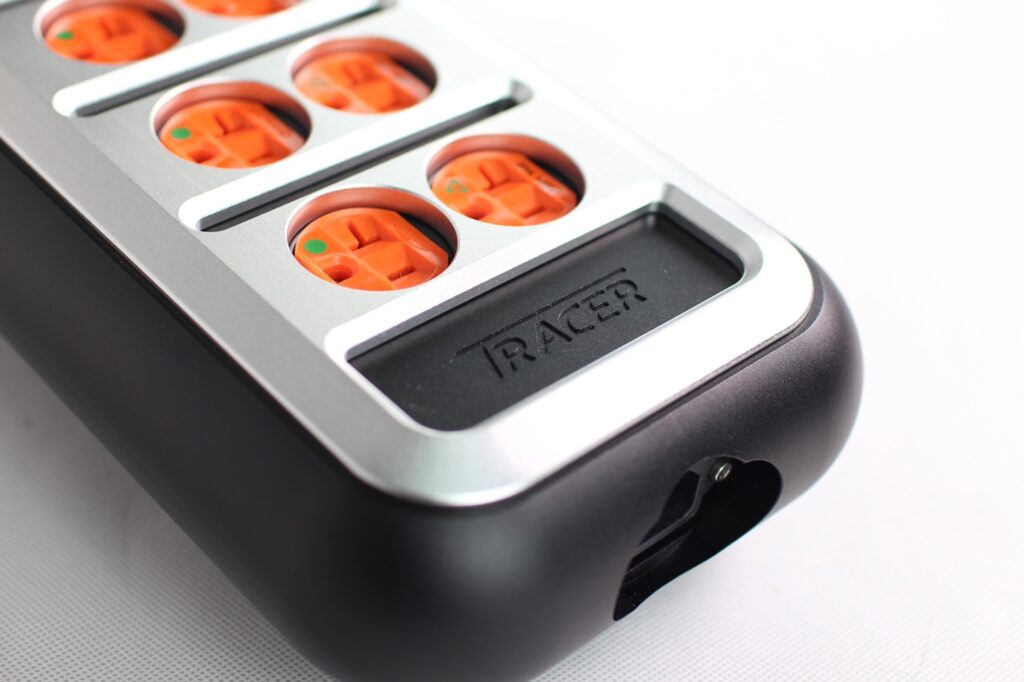

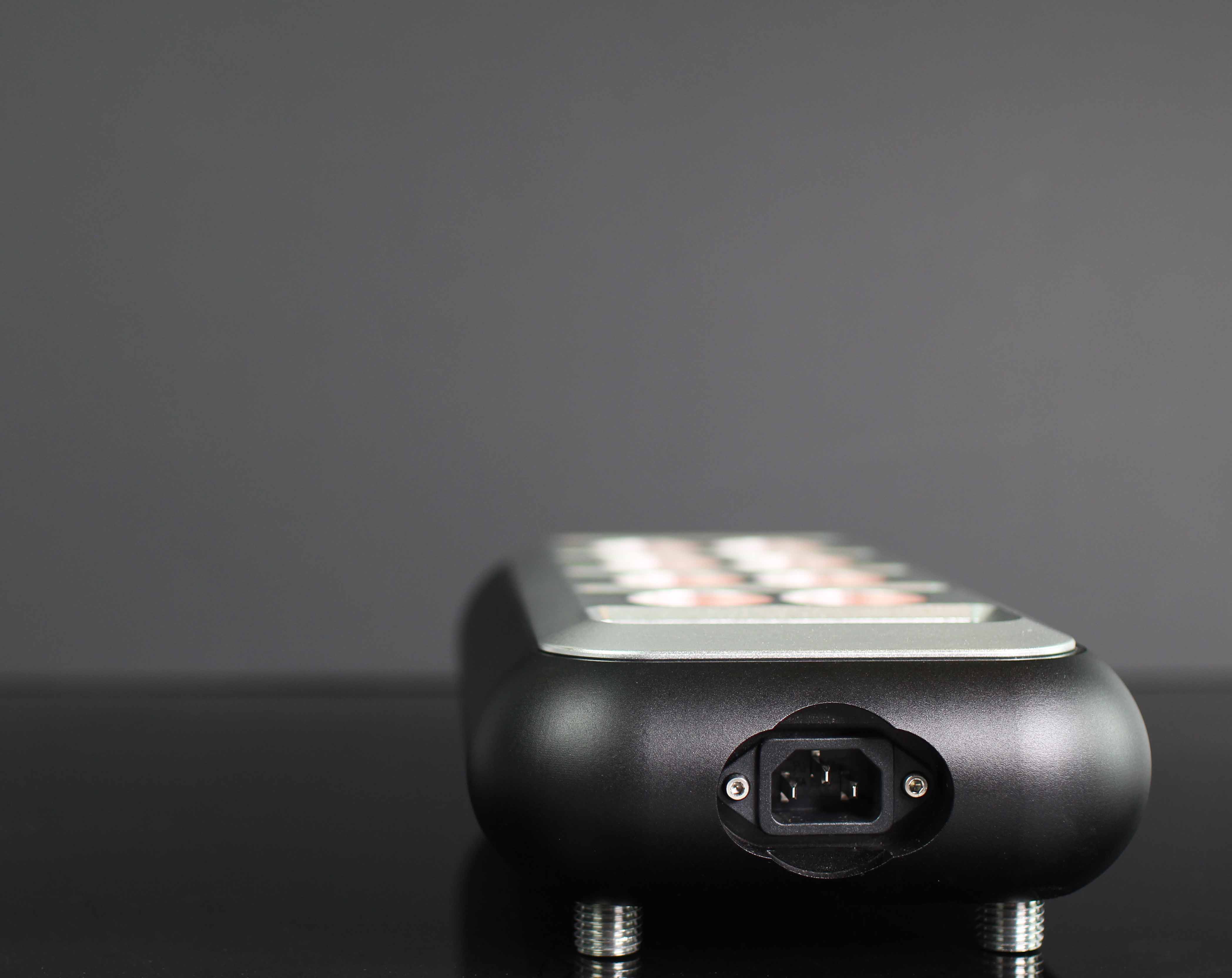

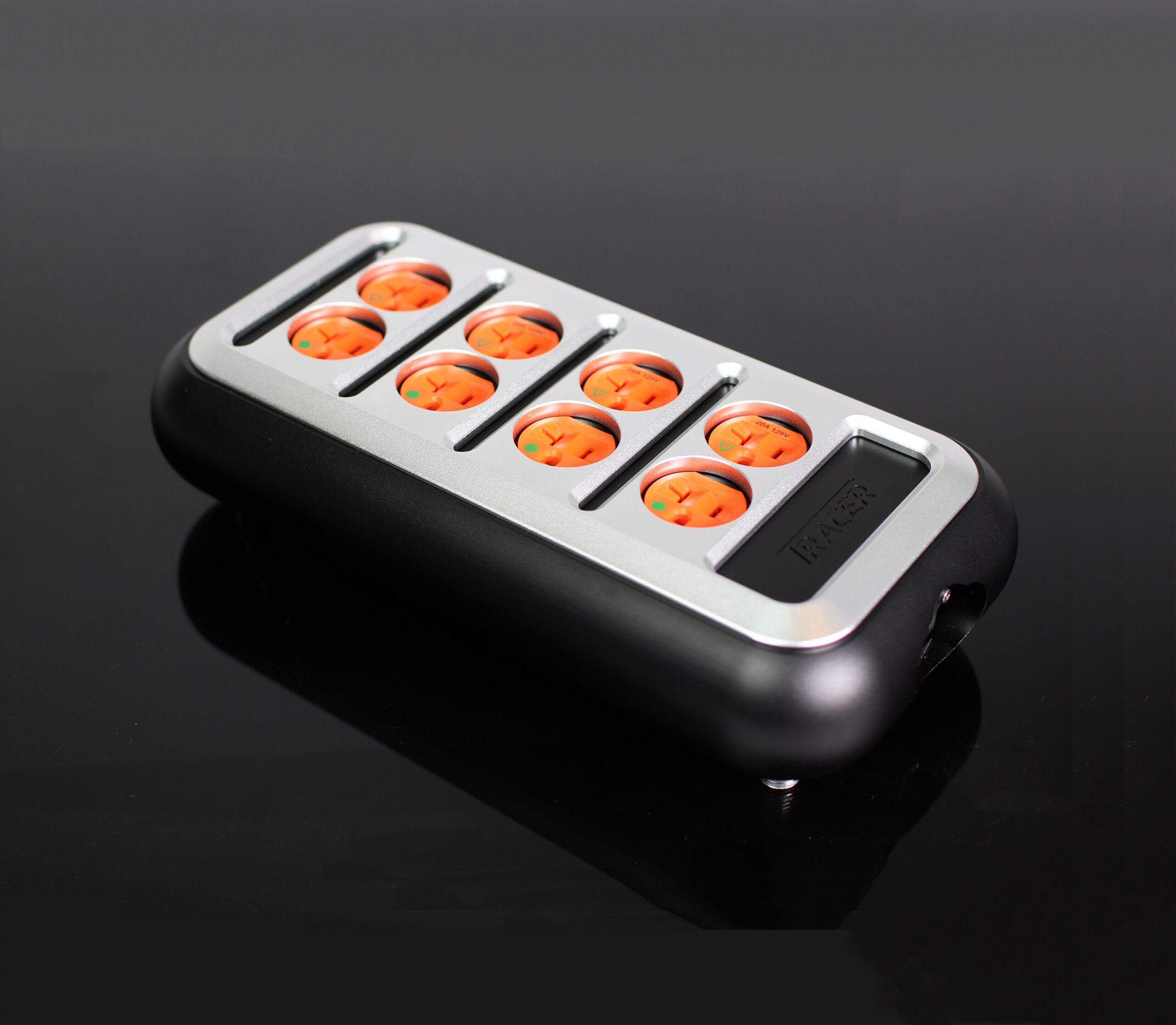

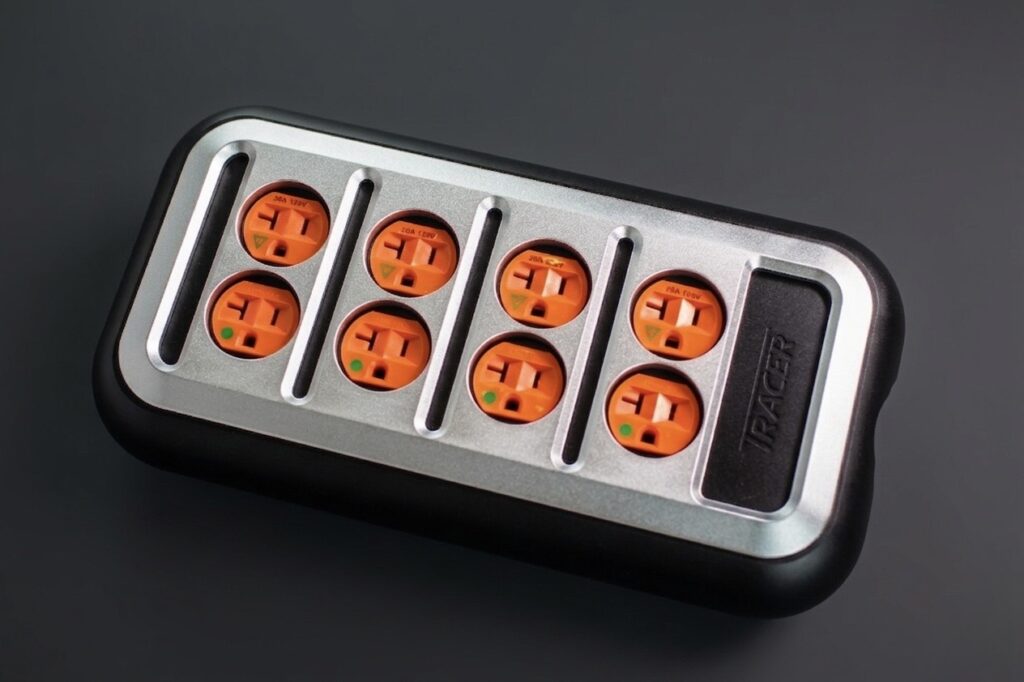

TS-1A80 Power Strip

The TS-1A80 power strip is meticulously crafted with an excellent metal finish. Its solid aluminum alloy casing provides stability and vibration reduction, while the sealed design prevents internal circuit oxidation. The anodized surface offers a smooth feel, and the Hubbell 8200 orange claw-type outlets are rated for medical-grade use at 15A 125/230V. The TS-1A80 power strip excels in improving background silence and enhancing music dynamics. It offers a neutral and transparent sound profile, allowing for a pure audio experience. Overall, it combines durability, aesthetics, and superior performance.

Dimension (W x H x D): 155 x 77 x 310mm
Weight: 4.8 kg
Silver Ground
